- Наличност: В наличност
- Производител: Shenzhen Electrics
- Кат. номер: 378
Купи с
Свързани продукти

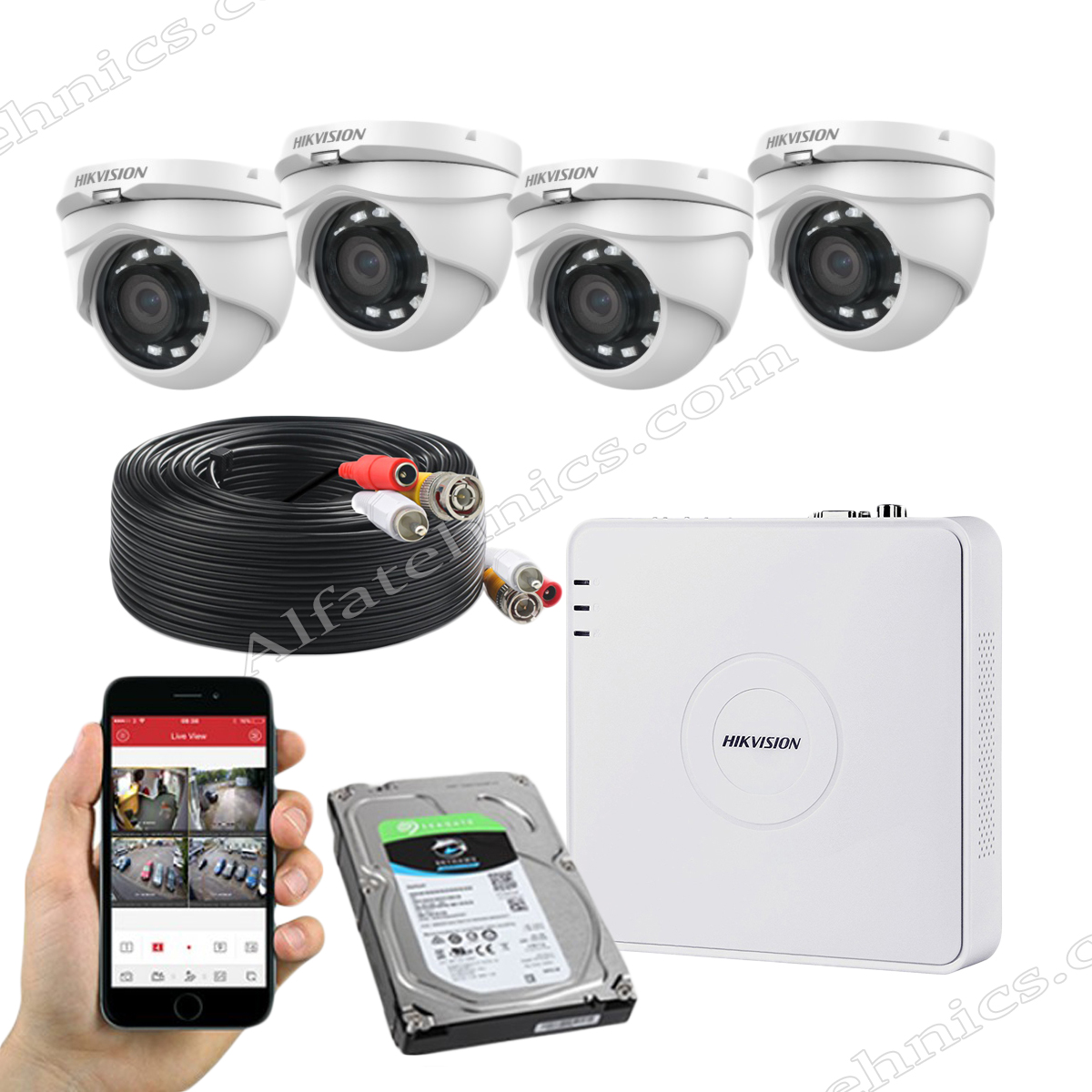

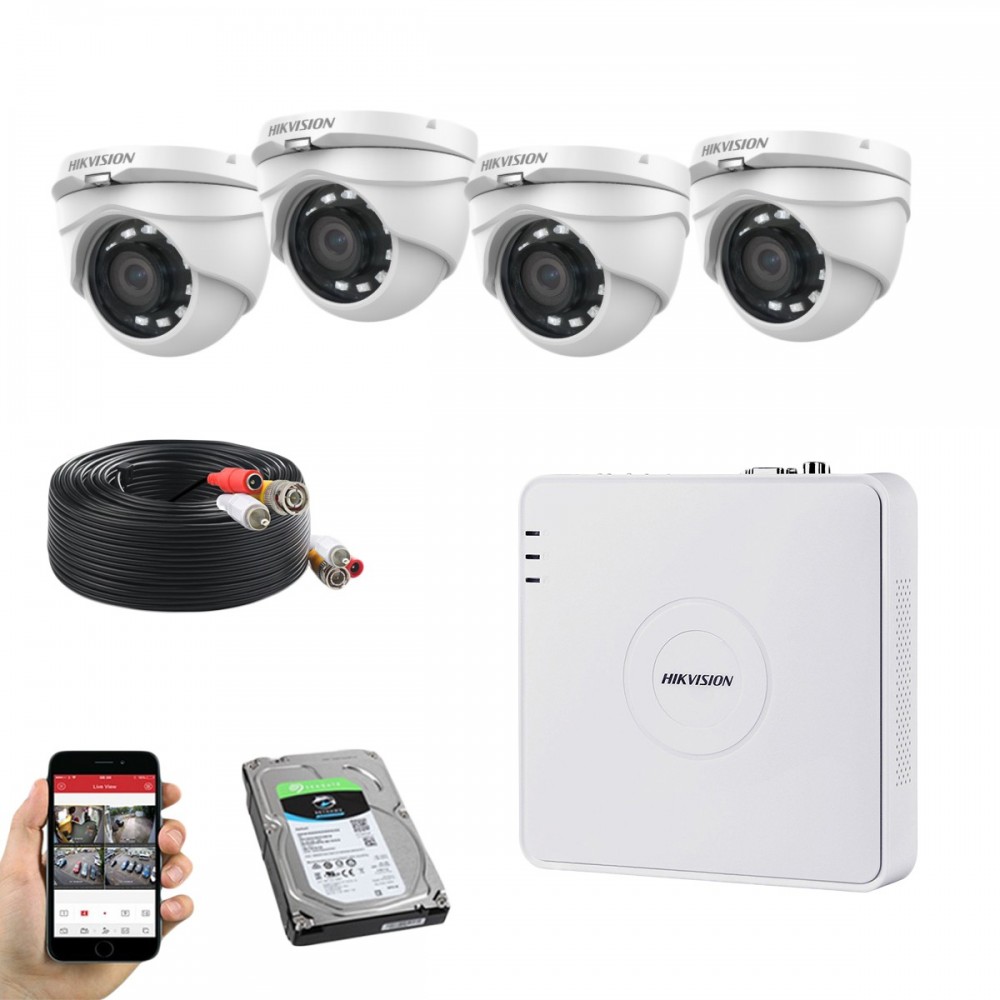

Комплекта включва:
-Видео рекордер 4ch (DVR) до 4 mpx Hikvision DS-7104HQHI-K1 поддръжка аудио по коаксиал.
- 4х Камери Външен монтаж Hikvision DS-2CE56D0T-IRMF FULL HD резолюция с нощен режим 25м
- 1х Захранващ Адапатер 12V/2A за DVR
- 1х Захранващ Адапатер 12V/5A за Камери

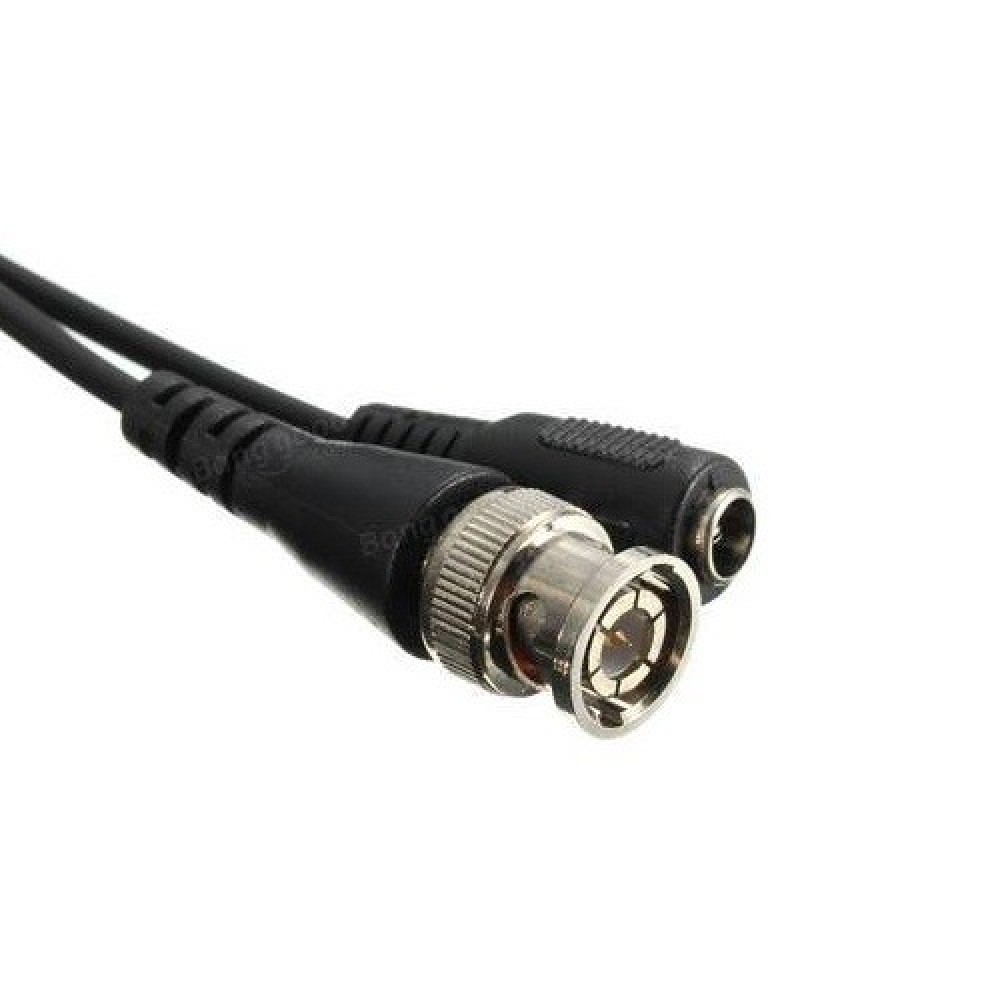

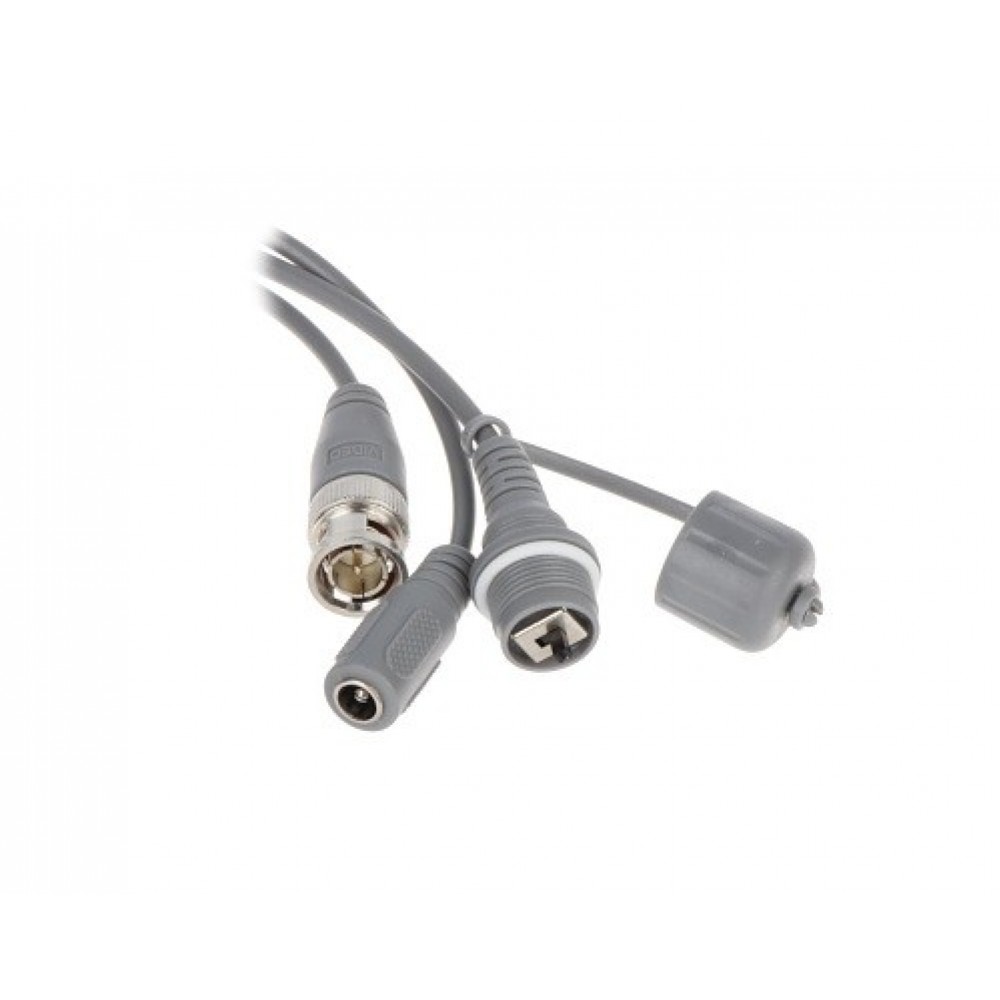

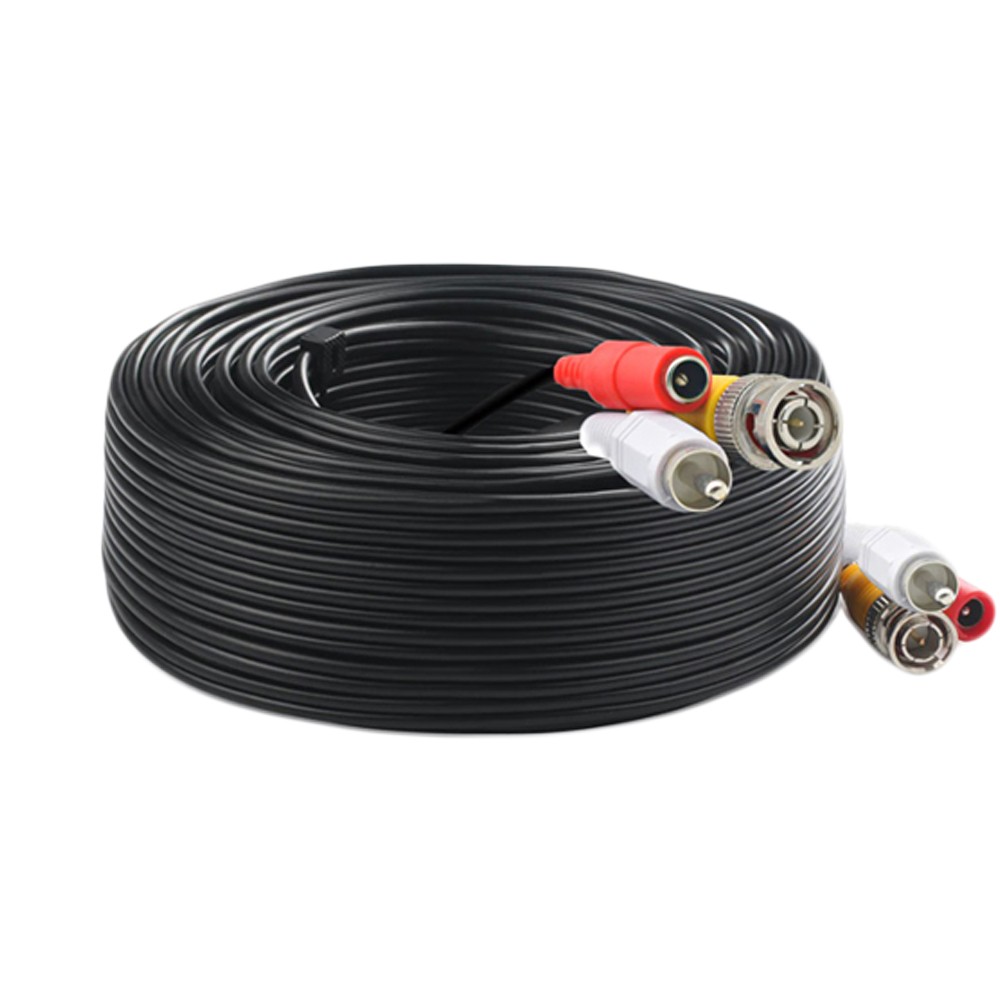

- 4x Кабели 20м.
- 1х Мишка
- Ръководство

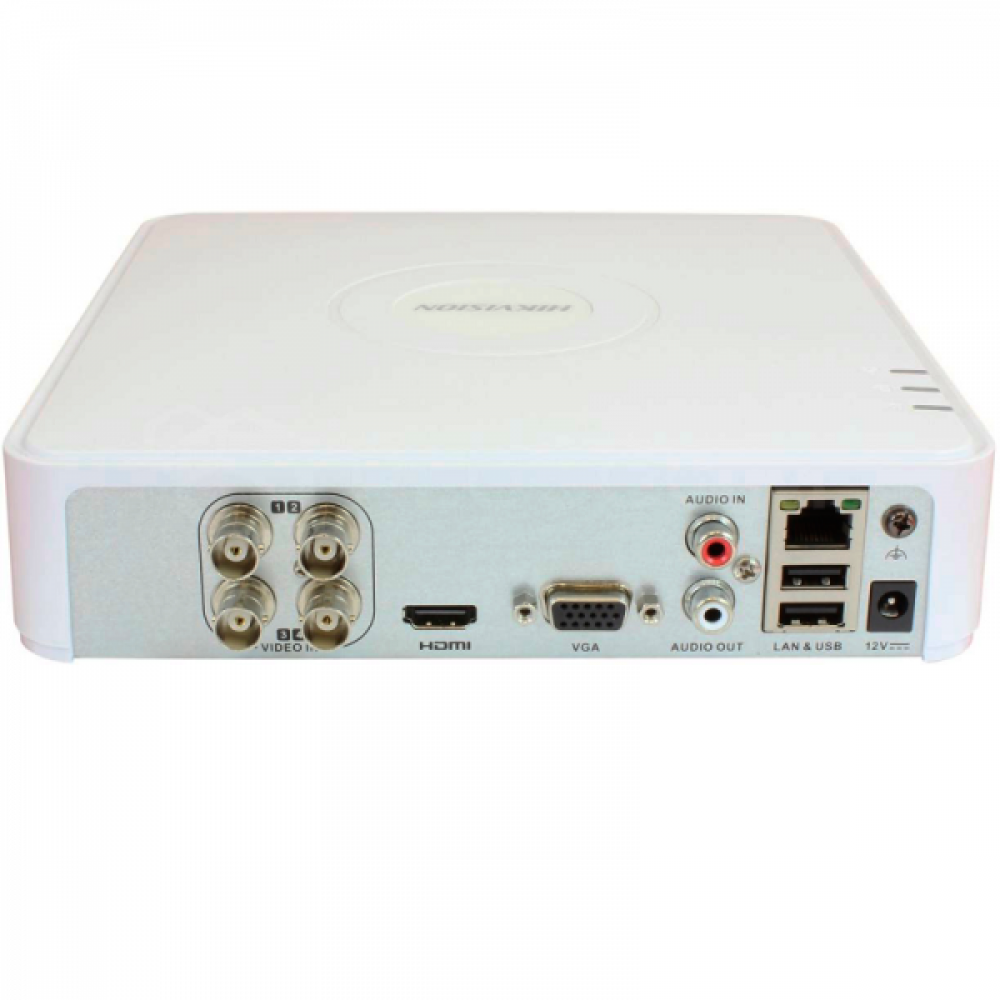

Характеристики на DVR
МОДЕЛ: Hikvision DS-7104HQHI-K1
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps ,(P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
Video Bit Rate 32 Kbps to 6 Mbps Dual Stream
Support Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bit Rate 64 Kbps
Video And Audio
IP Video Input
2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)Two-Way Audio 1ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 4-ch
HDTVI Input:
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
VGA/HDMI Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network:
Remote Connections 32
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Alarm In/Out N/A
USB Interface Real panel: 2 × USB 2.0
General
Power Supply 12 VDC
Consumption (Without HDD)≤ 8 W
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weights (Without HDD) ≤ 1 kg (2.2 lb)

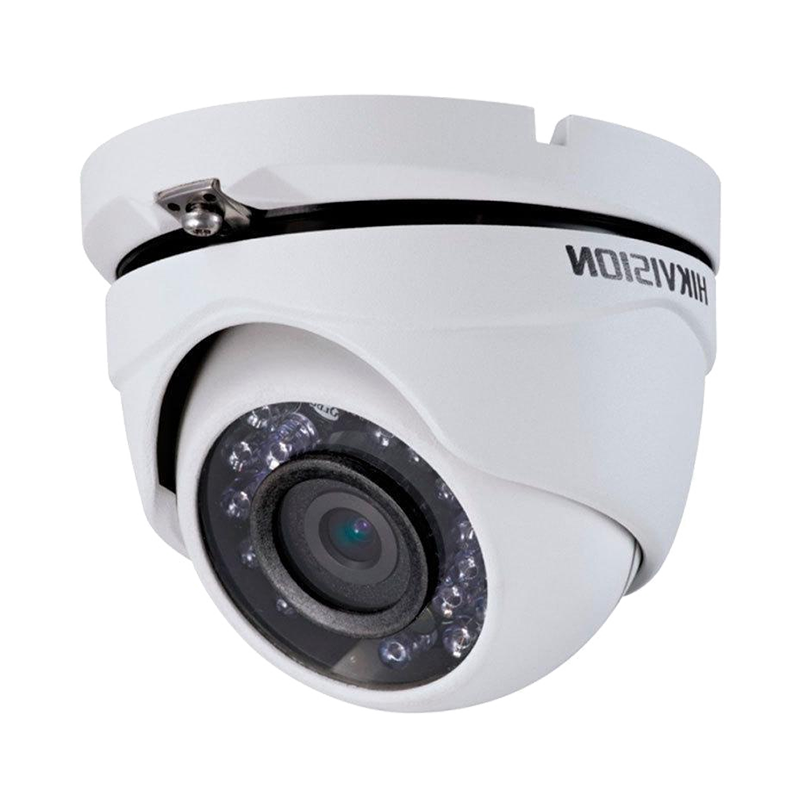

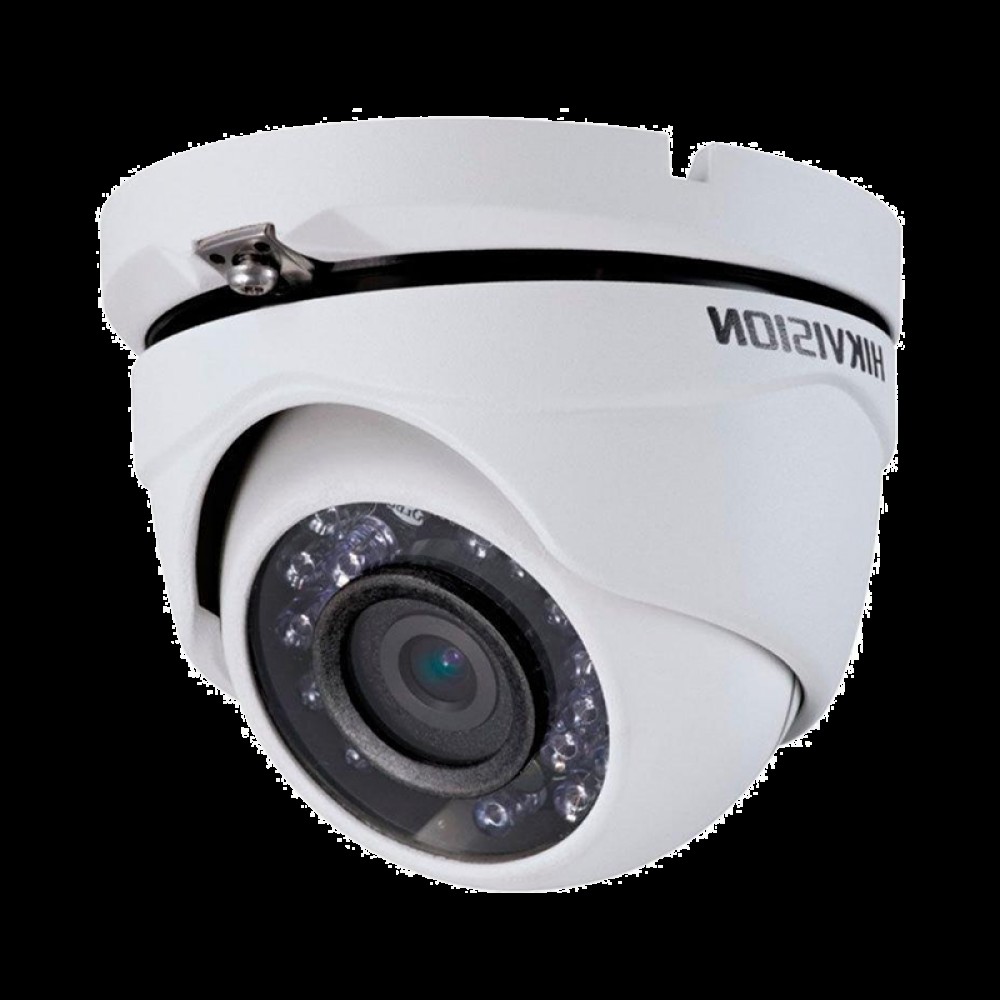

Характеристика купона камера DS-2CE56D0T-IRMF Hikvision
DS-2CE56D0T-IRPF
Lens 2.8 mm, fixed lens
Horizontal Field Of View 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Synchronization Internal synchronization
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Frame Rate PAL: 1080p@25fps,NTSC: 1080p@30fps
Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Menu AGC Low/middle/high Day/Night Mode
Smart/color/BW(Black and White)
Backlight Compensation Yes
DWDR (Digital Wide Dynamic Range) Yes
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror Interface
Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 4 W
Material METAL
IR Range Up to 25 m
Dimensions Φ 89.9 mm × 70.1 mm (3.54" × 2.76")
Weight Approx. 300 g (0.55 lb.)
